GM1700

Mid-Mount Rotary Mower

The contour cutting unit improves the contour following ability on undulating terrains. The three-split unit trims the grass evenly on complex terrains.


Features

  • The low center of gravity design improves operating performance on slope areas.
  • The contour cutting unit improves the contour following ability on undulating terrains.
  • The three-split unit trims the grass evenly on complex terrains.
  • The low center of gravity design improves operating performance on slope areas.
  • Optional SunShade and Protective net.

Deck

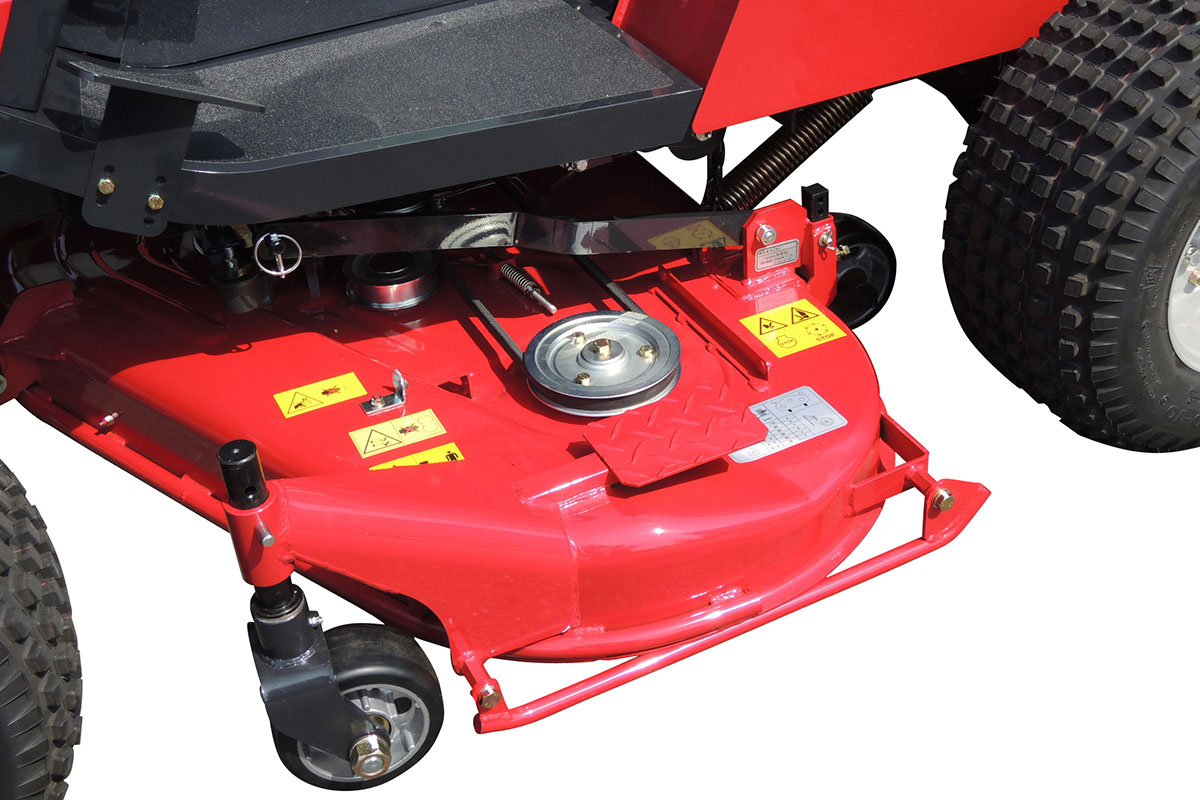

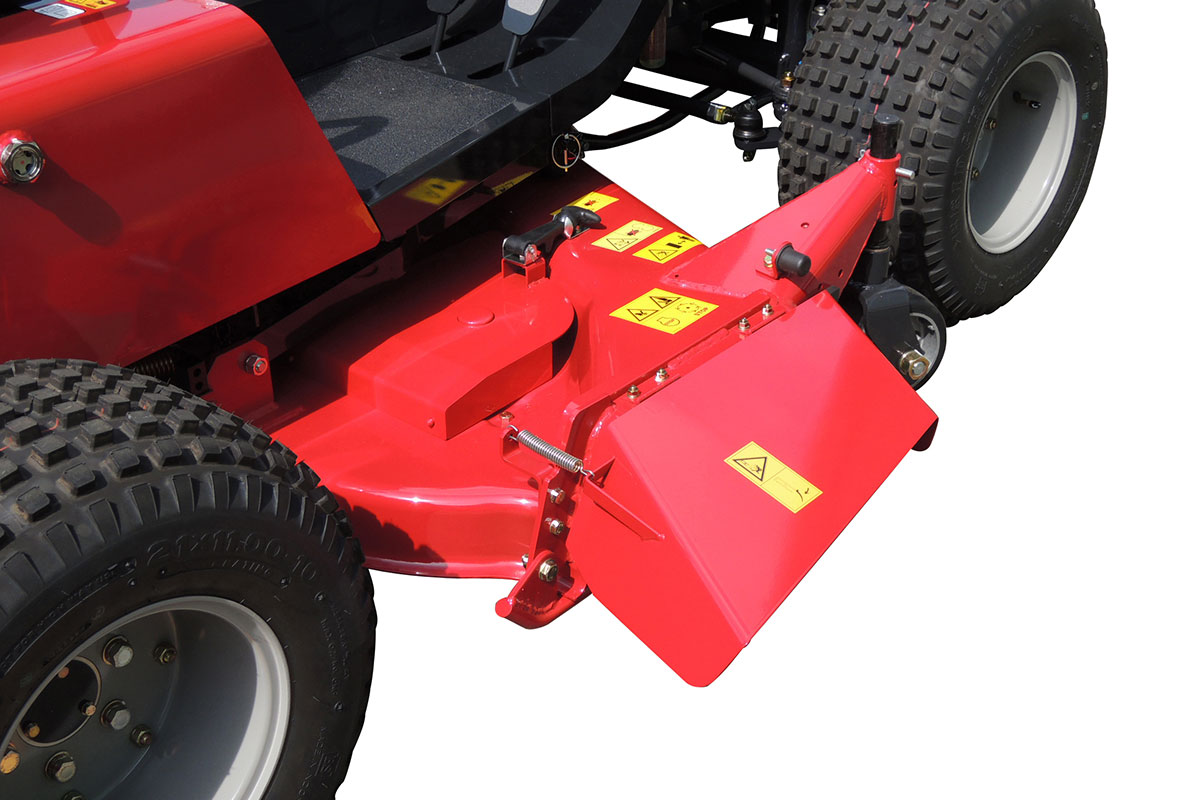

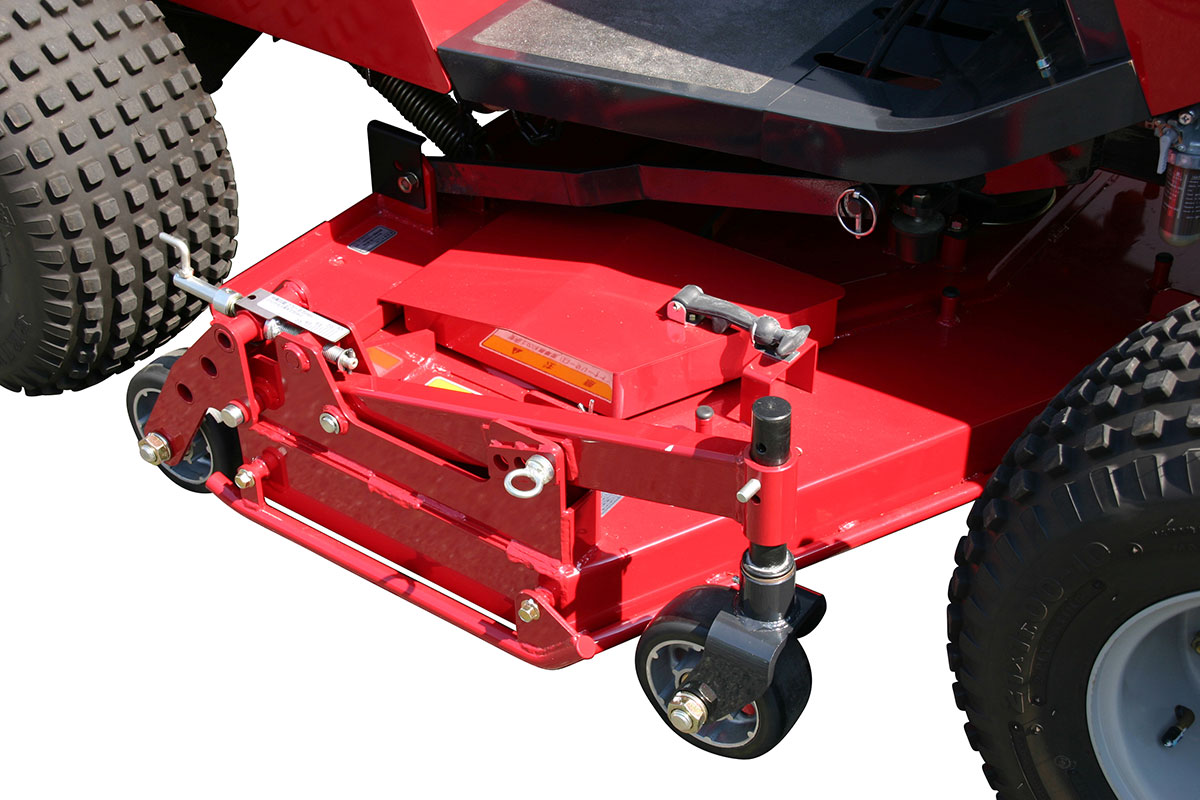

 Contour Deck  Standard Deck  Mulching Deck



Attachment (Standard Deck only)

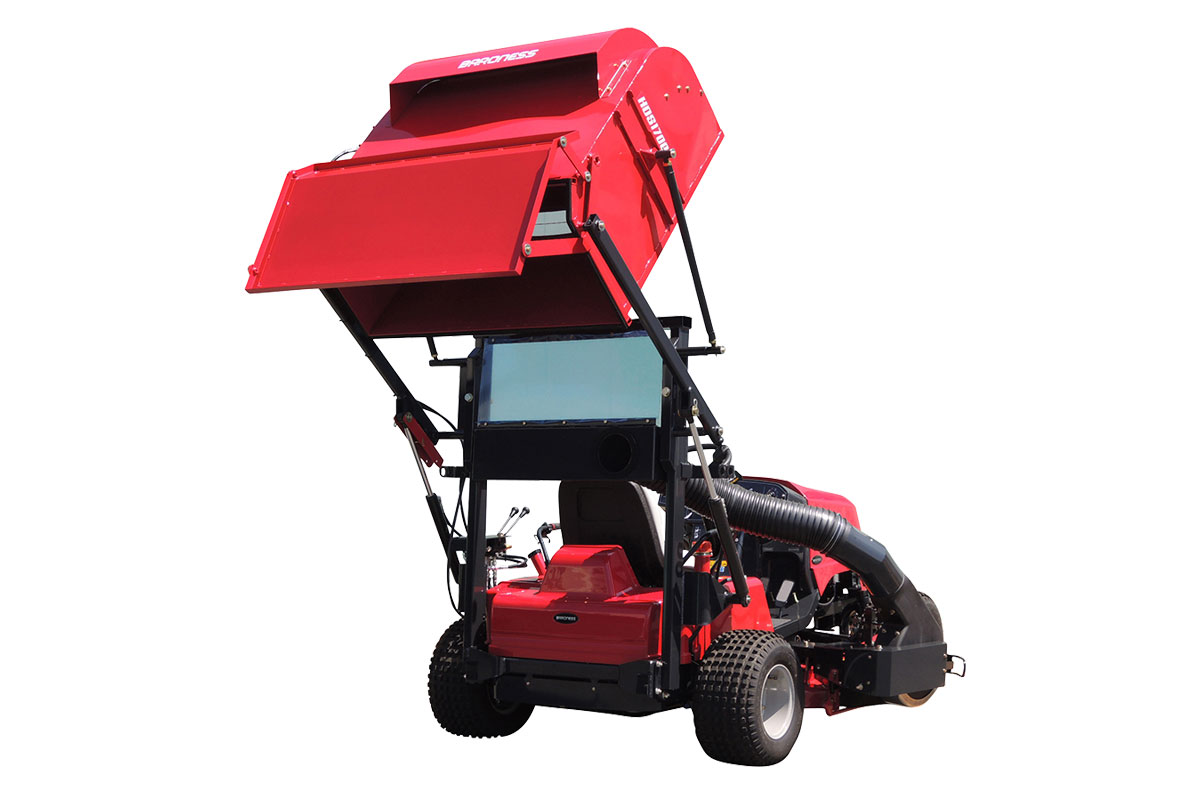

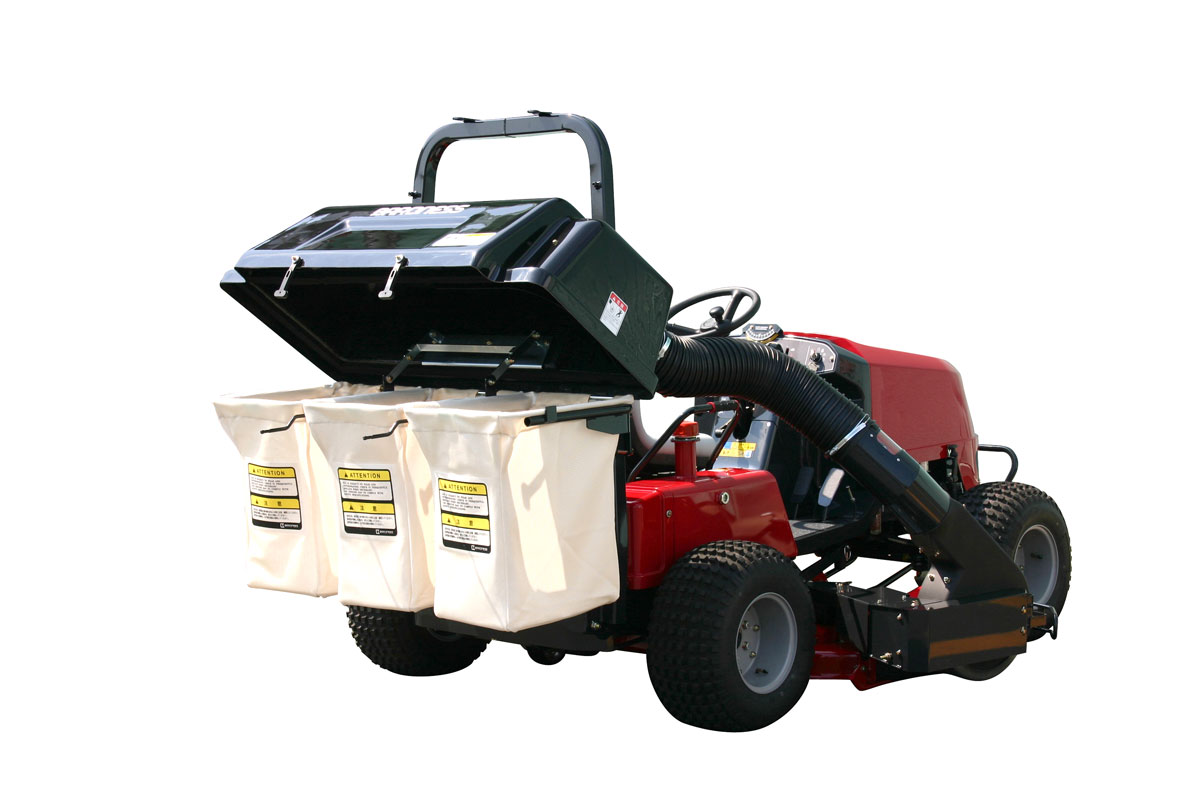

 Grass Catcher  High Dump Sweeper



Specification

Dimensions Total length 255 cm
Total width 183 cm
Total height Roof 190 cm
Steering wheel 121 cm
Weight Machine (empty fuel tank) with ROPS 896 kg
Minimum turning radius 298 cm
Engine Model Kubota D1105
Type Vertical Water-cooled 4-cycle diesel engine
Total displacement 1,123 cm3 (1.123 L)
Maximum output
Rated output 18.1 kW (24.6 PS)/2,800 rpm
Fuel tank capacity Diesel 23.0 dm3 (23.0 L)
Operating width (Mowing width) 151 cm
Operating height (Mowing height) 35 - 95 mm (15 mm spacing, 5 levels)
Number of Blades 3
Drive Traveling HST (2WD/4WD selectable)
Mowing Mechanical
Speed (HST) Forward 2WD 0 – 16.0 km/h
4WD 0 – 8.0 km/h
Reverse 2WD 0 - 14.0 km/h
4WD 0 - 7.0 km/h
Efficiency 6,040 m2/h (5.0 km/h x mowing width x 0.8)

※The factory default maximum engine rpm is 2,800 rpm.
Contour deck
